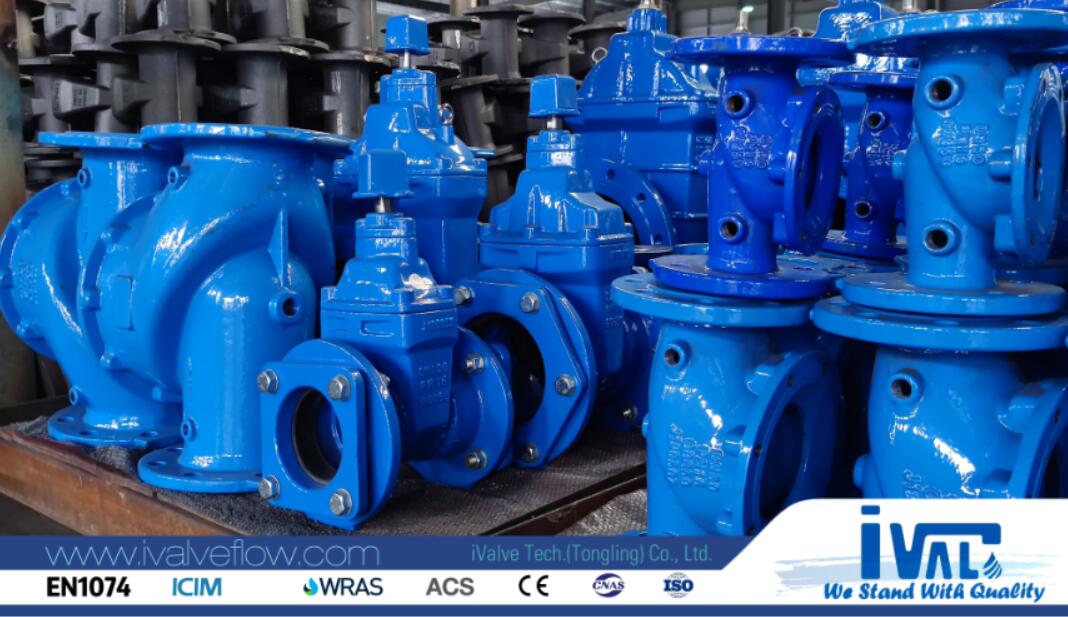

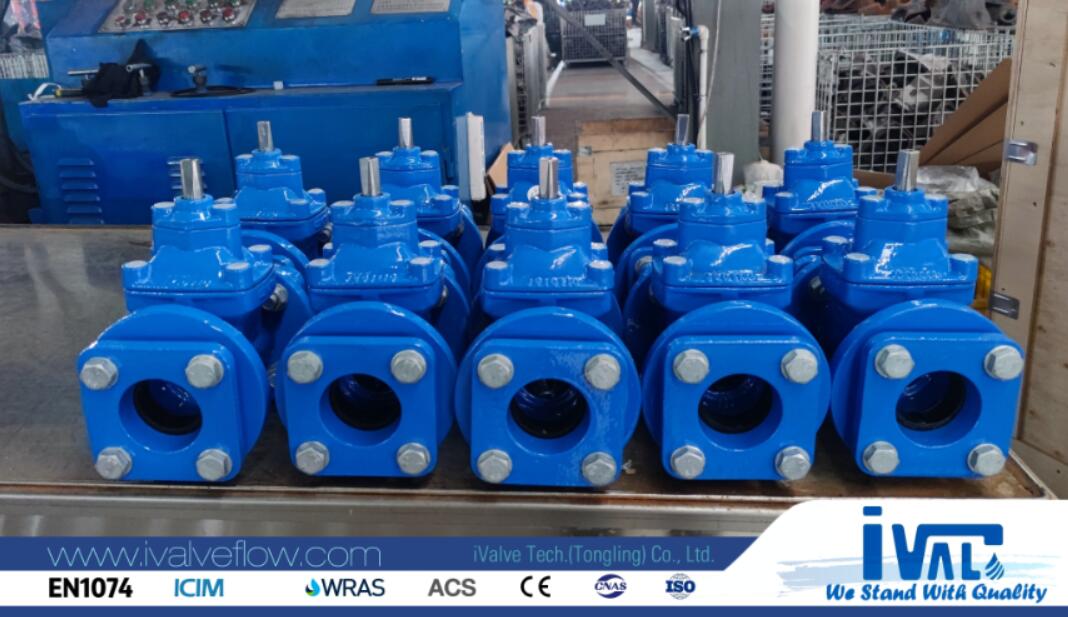

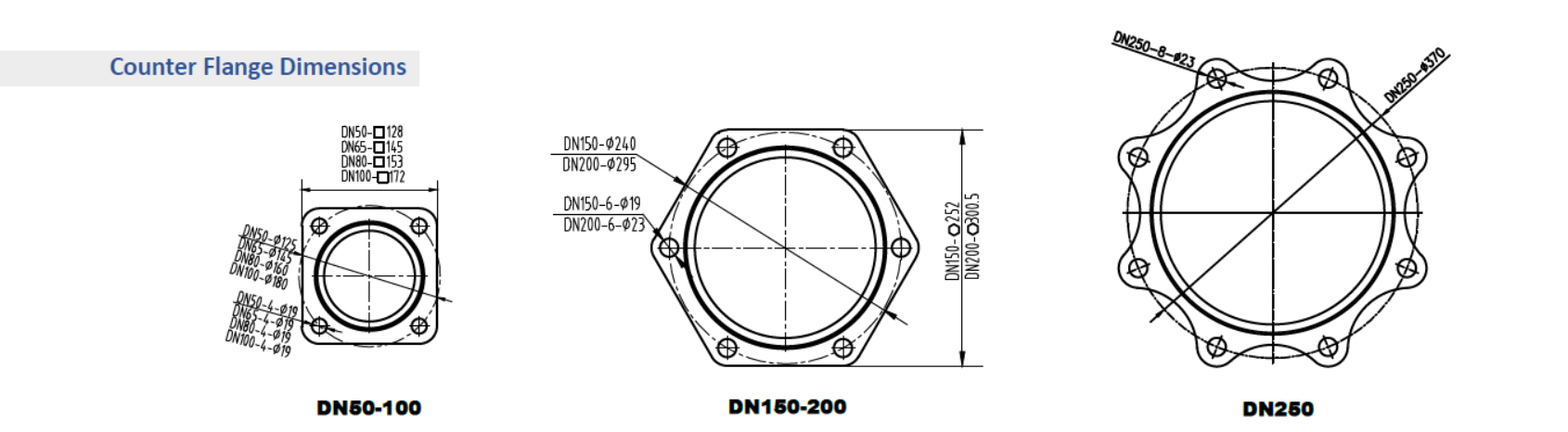

This valve is design with socket end on both sides of the valve, sealed with NBR gasket in the socket, PVC pipe will be fastened by the extra flange of each side of the flange
? Class A sealing (ZERO LEAKAGE) ? 100% testing before packing and delivery.?
? Completely free and full bore self-cleaning & low-pressure loss.?
? Clockwise closing (CWC) as standard, anticlockwise closing upon request.?
? Operation: Manual handwheel, Square cap, Extension Spindle, Gearbox, Electric actuator?
? Bonnet bolts are in Galvanized Carbon Steel, and sealed with hot melt to prevent corrosion. ?Other materials upon request.?
? Gland and cap bolts are in SS304 to prevent corrosion.?
? O-ring bonnet gasket wraps each bolt to prevent corrosion?
? Linear sealing design provides better sealing & lower closing torque.
