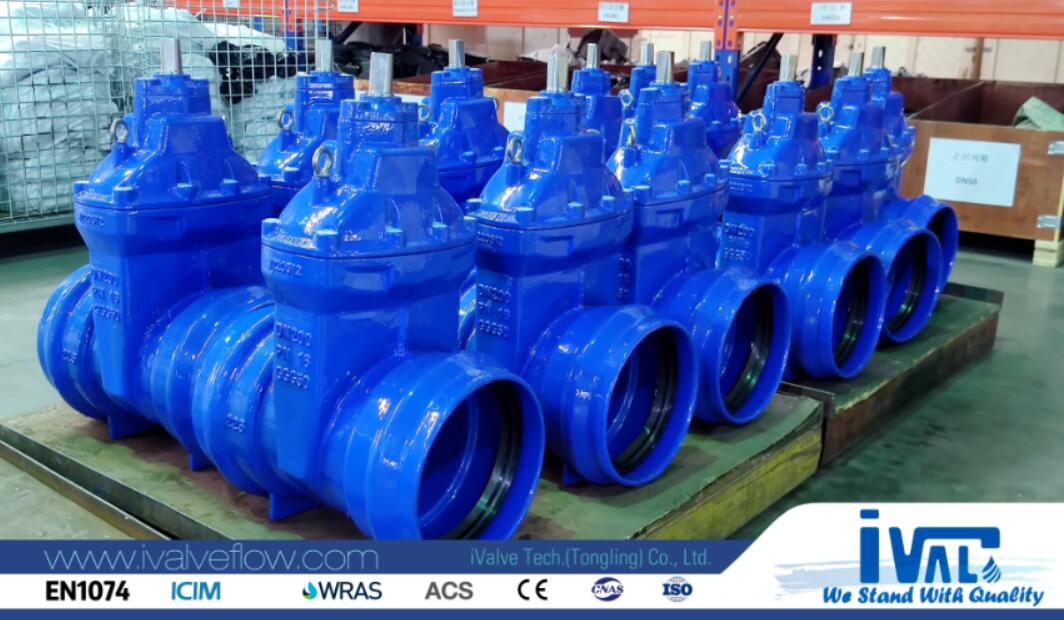

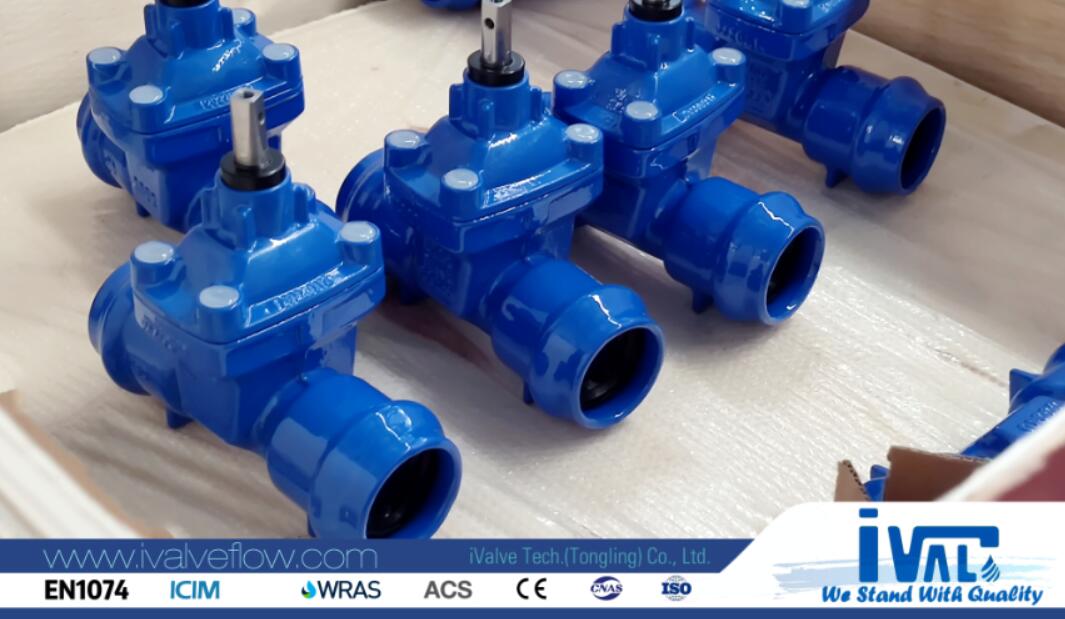

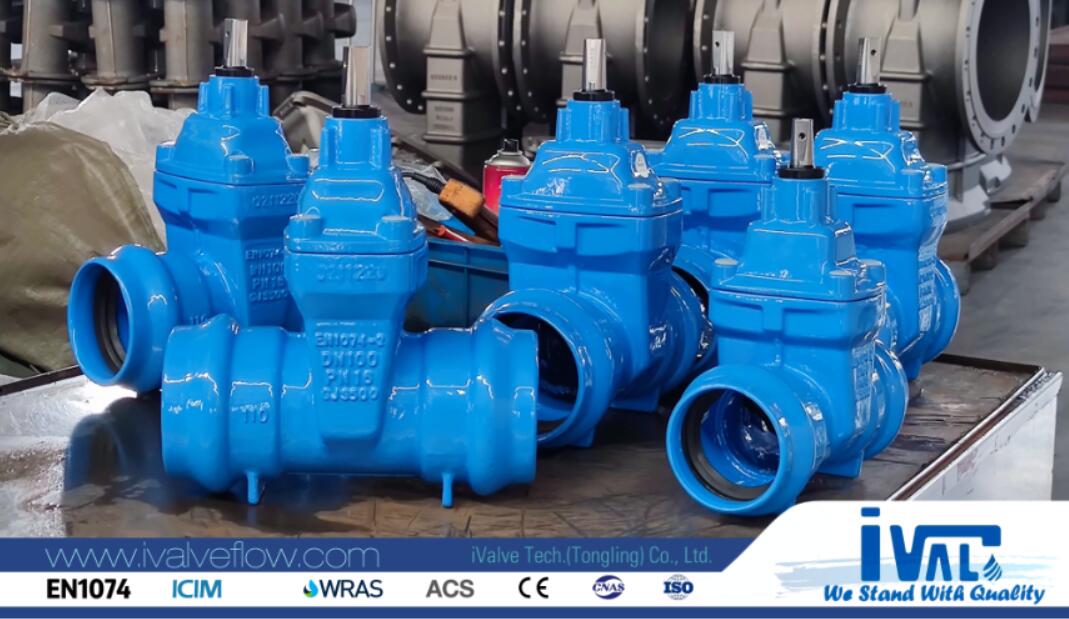

this type resilient seated gate valve is designed with two sockets end for PVC pipe, each end of the valve with one NBR sealing gasket in the socket to make sure the valve have very good attach to the pvc pipe and also guarantee the sealing performance.
Main features:
- Huge convenience in daily water-using and repairing
If sealing parts in the bonnet are broken, we could replace the sealing parts with the valve completely open when the valve is still in the pipeline.
- Class A sealing (ZERO LEAKAGE)
- 100% testing before packing and delivery.
- Completely free and full bore self-cleaning & low-pressure loss.
- Clockwise closing (CWC) as standard, anticlockwise closing upon request.
- Operation: Manual handwheel, Square Cap, Extension Spindle.
- Bonnet bolts are in Galvanized Carbon Steel, and sealed with hot melt to
prevent corrosion. Other materials upon request.
- O-ring bonnet gasket wraps each bolt to prevent corrosion.
- Linear sealing design provides better sealing & lower closing torque.
- Potable water approved epoxy coating, fusion bonded according DIN 3476-1, EN 14901
